File Requirements

Property	Value
Accepted types	PDF, HL7, XML, JSON, CSV, Parquet, PNG, JPEG, HEIC, HEIF, GIF, AVIF, WEBP, BMP, TIFF
Max file size	10 MB
Filename	Prefer ASCII; avoid special symbols

Supported formats breakdown

Documents: PDF (.pdf)
Structured Data: HL7 v2 (.hl7), FHIR / XML (.xml), JSON (.json), CSV (.csv), Apache Parquet (.parquet)
Images: PNG (.png), JPEG (.jpg, .jpeg), HEIC / HEIF (.heic, .heif), GIF (.gif), AVIF (.avif), WebP (.webp), BMP (.bmp), TIFF (.tiff, .tif)

Need test files? Download our synthetic, non-PHI sample documents to test the upload pipeline:
📄 sample-lab-Haematology.pdf (PDF)

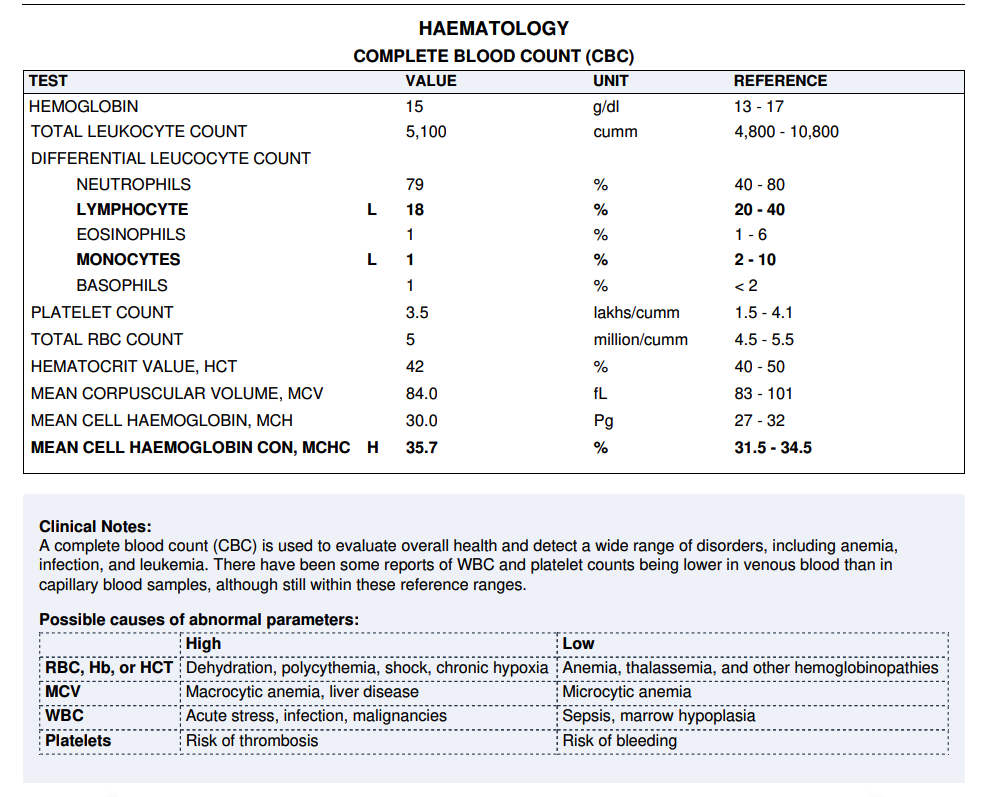

🖼️ sample-lab-CBC.png (CBC Image)

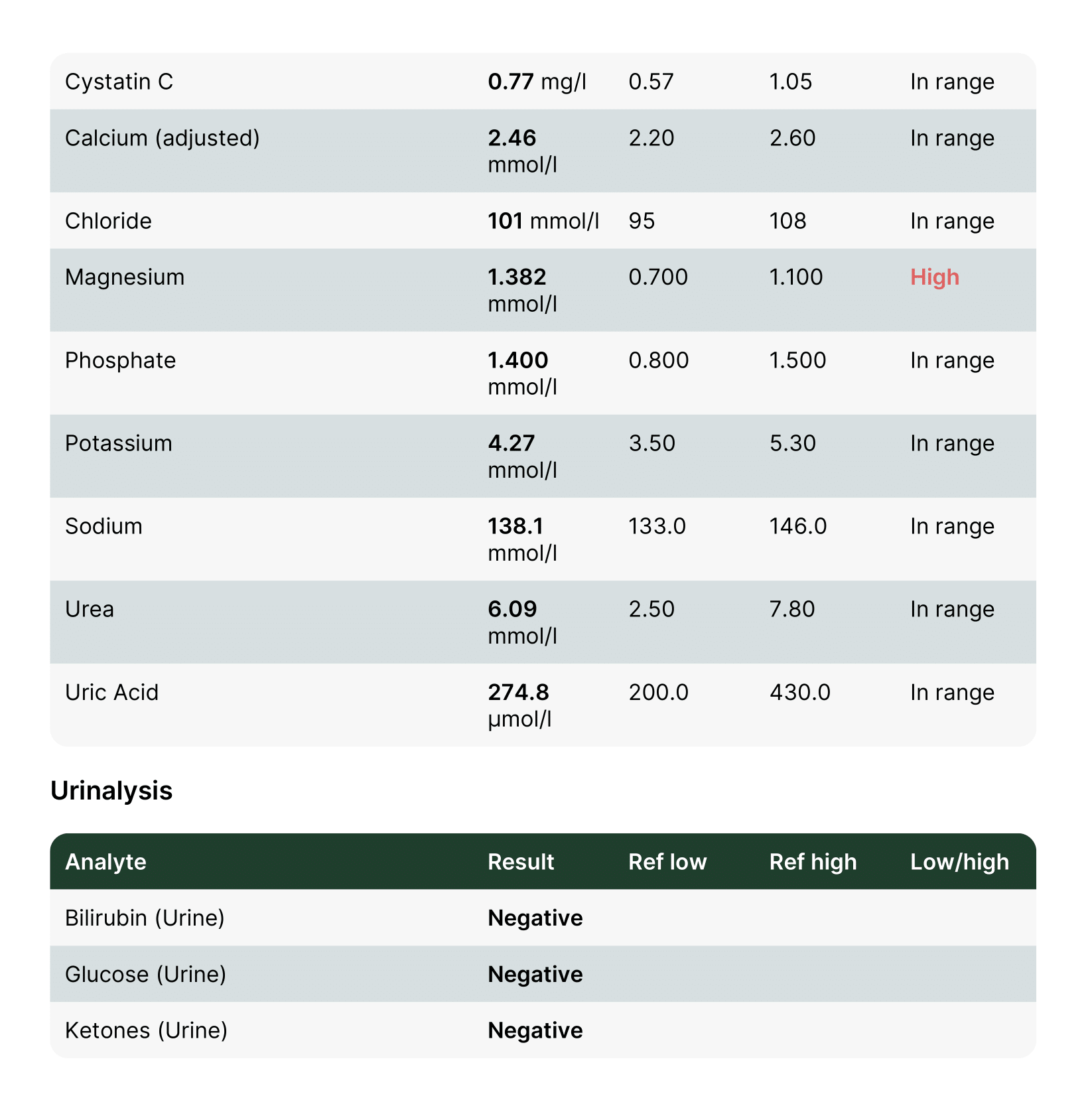

🖼️ sample-lab-blood_urine.png (Biochemistry & Urinalysis Image)
See full details on the Sample Files page.

Form field name

The file field name is deviceImage.

Content-Disposition: form-data; name="deviceImage"; filename="your-file.pdf"

Single file upload

curl --location 'https://app.jondax.eu/api/master?module=pathology' \
--header 'Authorization: Bearer <JONDAX_API_KEY>' \
--form 'deviceImage=@"/path/to/lab-report.pdf"'

Response:

{
  "success": true,
  "data": {
    "type": "pathology",
    "status": "uploaded",
    "uploads": [
      {
        "uploadId": "<uploadId>",
        "fileName": "E46UNRB_96dpi_1.png",
        "message": "File uploaded successfully"
      }
    ],
    "filesCount": 1,
    "message": "1 pathology file(s) uploaded successfully"
  }
}

Multiple files

You can upload up to 10 files in a single request by sending multiple deviceImage fields. Each file is processed independently and gets its own uploadId in the response.

curl --location 'https://app.jondax.eu/api/master?module=pathology' \
--header 'Authorization: Bearer <JONDAX_API_KEY>' \
--form 'deviceImage=@"/path/to/report-1.pdf"' \
--form 'deviceImage=@"/path/to/report-2.pdf"'
